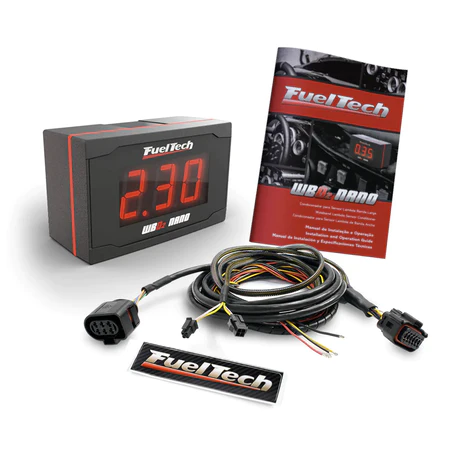

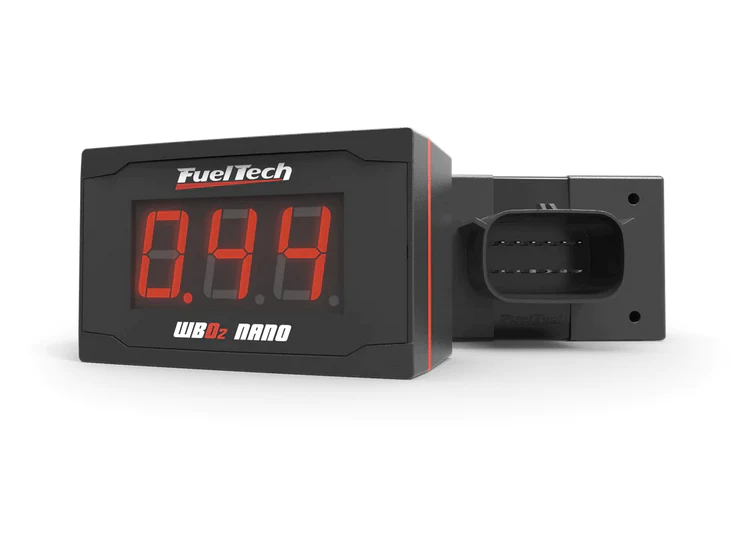

FUELTECH FTC3010003841 (WB-02 Nano W/O Harness)

Description

Technical Description

• Waterproof (IP67)
• Extended reading scale 0.35λ to 9.99λ, 5.15 to 147 Gas A/FR, 2.24 to 64 Alcohol A/FR*
• Wideband O2 sensor display and conditioner for Bosch LSU 4.2 sensors
• CAN communication with FT600 / FT550 / FT500 / FT500LITE / FT450: Sends the O2 reading via CAN to the ECU, freeing up the analog inputs
• Allows several conditioners connected to the CAN network, for use with individual cylinder reading or bank reading
• Easy viewing and small size
• 0-5V analog output for connection with stand alone ECU or external datalogger (WB-O2 Datalogger, PRO24 Datalogger)
• Bosch amplification and control circuit
• Update via CAN (FT500 connection required)
• WB-O2 Nano has replaced the previous WB-O2 Meter Slim

*The reading scale can be higher or lower then 0.35 λ, depending on sensor manufacturing characteristics.
